XOS Clora Online 線上氯分析儀
XOS 為石油產業提供XRF 線上總氯分析儀。想像一下，更聰明、更全面的分析解決方案：操作簡單、測試快速、符合性靈活，且精度領先業界。這些分析儀無需消耗氣體、燃燒或樣品轉化即可進行直接測量。
原油中通常含有氯，其濃度會因來源不同而差異很大。如果不去除，氯會在原油塔頂等區域發生反應，生成高腐蝕性的鹽酸，從而導致嚴重的運作問題、經濟損失和安全隱患。

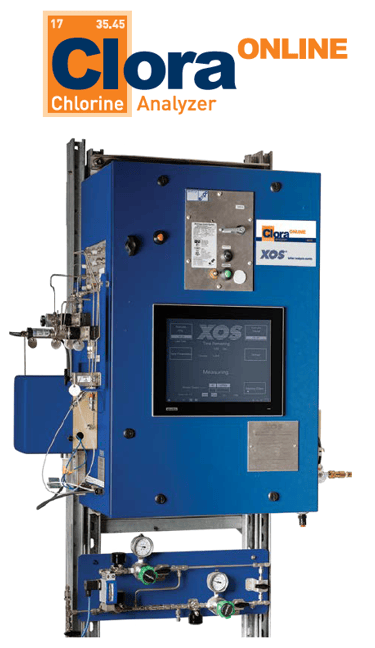

Clora Online 是一款工業製程氯分析儀，可提供連續的氯分析，用於監測工廠設備的腐蝕。此 XRF 分析儀採用 ASTM D7536 技術。透過監測脫鹽原油，工廠可以優化運行，並立即了解原油變化（包括有機氯化物）的影響。
此外Clora Online，亦可監測塔頂水還可以為化學品投加提供必要的回饋資訊。
線上氯元素析儀
Clora Online C1D2
Clora Online ATEX
Online Chlorine Analysis in Hydrocarbon or Water
Clora Online provides chlorine analysis without consumable gasses or elevated temperature processes, and delivers real-time data with a dynamic range of 0.2 to 3,000 ppm wt%. Measurement time is typically 5 minutes; however, 15-second snapshot data is available to monitor process upsets. There are no titrations or extractions, equating to very low maintenance.
This model features ATEX.
Continuous and real time analysis
Optimize performance and immediately see impacts of crude changes (including organic chloride)
Extremely low maintenance
No consumable liquids or gasses required
Total chlorine analysis in
Raw and desalted crudes - Water and effluent streams - Refinery process streams - Finished product
For use in multiple application areas
Upstream desalting, refining, power generation and effluent management.
Monitor corrosion & increase productivity
Direct measurement without sample conversion - Analysis in ppm (wt)
Specific Technology
MWDXRF
Specifications:
1.Clora Online Analyzer MWD XRF analyzer based on ASTM D7536
2. Dynamic range 0.2 - 3000 ppm wt.
3. Signal output: (2) user configurable 4-20 mA result outputs. One (1) alarm output, volt-free
4. Manual sample valve for lab verification
5. Four (4) 300cc SS sample cylinders for calibration fluids
